European Standard Quality
Our EN545 ductile iron fittings meet European standards. They ensure drinking water safety. These fittings provide reliable performance. They work with EN545 pipes perfectly. Choose our certified solutions.
Product Features
Full EN545 compliance: Manufactured and tested in accordance with European standard for water supply applications, ensuring consistent quality and performance.

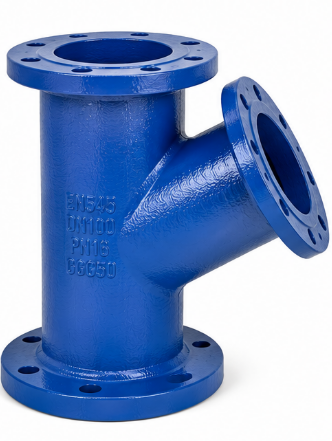

Extensive fitting library: Complete range including bends (11.25° to 90°), tees (equal and reducing), reducers (concentric and eccentric), and custom fabricated configurations.
Dual protective lining: Internal cement mortar lining conforming to EN 545 / ISO 4179 provides corrosion resistance and maintains water quality.
Robust external coating: Fusion-bonded epoxy coating minimum 250 microns or zinc-plus-epoxy duplex system per ISO 8179 for long-term underground service.
Core Selling Points
Robust external coating: Fusion-bonded epoxy coating minimum 250 microns or zinc-plus-epoxy duplex system per ISO 8179 for long-term underground service.

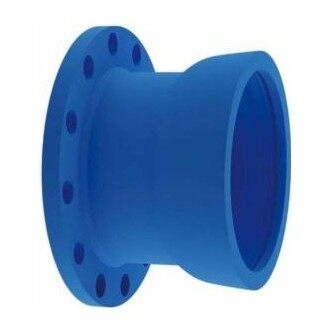

Multiple joint options: Available with flanged ends, push-on socket ends, or combination configurations to interface with various pipe materials and valve connections.
Traceable production: Each casting marked with heat number enabling full material traceability to EN 10204 standards.

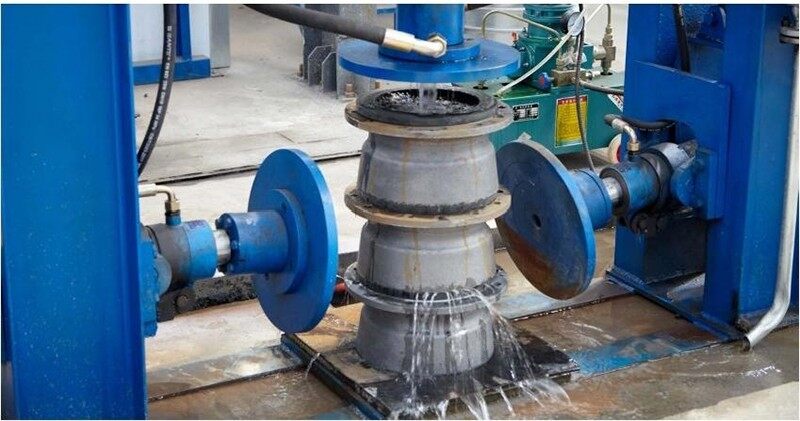

Pressure-rated integrity: Designed to withstand rated pressure with safety margin, verified through 100 percent hydrostatic testing.
Quality Control
We follow EN545 standards strictly. We test material quality first. We check all dimensions. We examine coating quality. We conduct pressure tests. We verify performance. We issue certificates.
Installation Guide
Prepare pipe ends properly. Clean all surfaces thoroughly. Check fitting condition. Apply lubricant correctly. Push pipes together fully. Ensure proper engagement. Test for any leaks.
Typical Applications
Municipal drinking water transmission and distribution networks
Raw water intake and conveyance systems
Pumping stations and reservoir connections
Industrial water supply pipelines
Fire protection water mains
Rehabilitation and replacement projects requiring standardized fittings
Product Parameters Table
|
Parameter |
Specification |
|
Standard |
EN545 |
|
Size Range |
DN80 - DN1200 |
|
Material |
Ductile Iron 500-7 |
|
Pressure Rating |
PN10/16/25 |
|
Coating |
Zinc + Bitumen |
|
Lining |
Cement Mortar |
|
Temperature |
0-50°C |
Packaging Details
We use standard packaging. Wooden crates protect products. Plastic caps cover ends. Steel straps secure loads. Waterproof material outside. Clear labels show details. Safe transport ensured.
Media Compatibility
Suitable for potable water, raw water, and non-aggressive fluids with pH range 6 to 12. Cement mortar lining ensures compliance with drinking water quality requirements.
Accessories
Factory-applied cement mortar lining with approved drinking water certification
Alternative internal linings: epoxy (thick-film or fusion-bonded), polyurethane for abrasion resistance
External coating upgrades: dual-layer FBE, polyurethane, or polyethylene sleeving for aggressive soils
Gasket kits for push-on joints including lubrication
Flange gaskets and bolting sets for complete installation packages
Custom fabricated fittings for non-standard angles, offsets, or special configurations
Marking and tagging per project specifications with QR code traceability
